The studio

A graph is a document.So is every run of it.

The canvas is where the work gets built, and the run monitor is the same canvas with the truth painted on it. What you save is a definition you can export and diff; what you get back is a run you can open a month later and still see what each node produced.

The DjiniousWorkflow canvas showing a six-node invoice matching graph: a start node, a three-way match script, an if/else branch, two data nodes for the two outcomes, and an end node. — Six nodes, one branch, each node printing the function it calls under its name. The palette on the left is the whole catalog, searchable.Seeded showcase project

What it does

The working surface, control by control

The palette
330 nodes, by tool or by category
Search by name, browse by tool, drag onto the canvas or click to place. Custom nodes built in this deployment sit in the same palette as the built-ins, because they are in the same catalog — there is no second-class shelf for the node you needed and did not have.
The inspector
typed parameters, with their help
Each parameter renders as the control its declaration asks for — a select for an enum, a code editor for SQL or JavaScript, a picker for a credential or another workflow, a masked box with a reveal for a key. Fields that are inert for the current configuration are hidden rather than left to mislead.
Expressions everywhere
{{ }} against the payload and the run
{{$input.items[0].name}} reads the incoming payload, {{$merged[1]}} a branch of a join, {{$settings.region}} the run's context, {{$counter}} the loop iteration. A value that is exactly one expression keeps its type; one embedded in text interpolates.
Handles that mean something
true · false · error · named
A branch node draws a true and a false output; any node can grow an error output that catches its failure; a switch invents one handle per case. An input can fire per arriving branch or wait for all of them — which is the difference between a fan-in and a join.
Arrange
dagre, plus the rules a workflow needs
One button lays the graph out: columns by depth, the happy path kept straight, error branches stacked underneath it, entry and terminal nodes pinned to the outer columns. Shift-click pins your current selection and lays out the rest around it.
Nodes that draw
chart · table · gauge · map · feed
A node can be a widget: its body becomes the chart or the table it published, sized how you left it. That is what makes a run monitor legible at a glance instead of being a log with a graph above it.

Watching a run

The canvas, with the truth painted on it

A run is watched on the same graph you built. State is drawn at the corners of each node — a spinner while it works, a check with the repetition count beside it, a red mark carrying the failure message — because the body of the node belongs to the author and a status badge that pushes a chart around is one that made the graph less readable exactly when it mattered.

A finished DjiniousWorkflow run: three parallel endpoint checks, one failed node in red carrying its error message and retry count, the rest green with their execution counts, and a table widget drawn inside one of the nodes. — The failure in the middle is the product working: two retries with backoff, then out by the error branch, which opened an incident and paged the owner. The run finished green because that is what the graph says should happen.Seeded showcase project

Live over a websocket, and polled as well, so a dropped connection degrades to the poll interval
Pause, step, stop — or fire a single node by hand with a payload you type
Widgets replay when you open a finished run: the log carries them, not just the socket
A node that failed says so where it failed, with the message and the attempt count

The run monitor and the editor are the same component with a different question in front of it. That is deliberate: an operator watching a failure and an author fixing it should be looking at the same picture.

The explorer

Any payload, full page

The glance you take while a run is going is not the look you take when the glance raised a question. Any node's output opens full-page — sortable, filterable by column, searchable, chartable, profileable, exportable to CSV — and it works on the plain sql:query node nobody decorated, because it reads the task's own result when there is no published widget.

Rows, chart, statistics and raw JSON of the same payload, one click apart
Column picking, per-column filters, paging and search over everything
Save the configuration — the sort, the filters, the hidden columns, the chart — onto a page
What is saved is the configuration, never the data: the new page is as fresh as its graph's last run

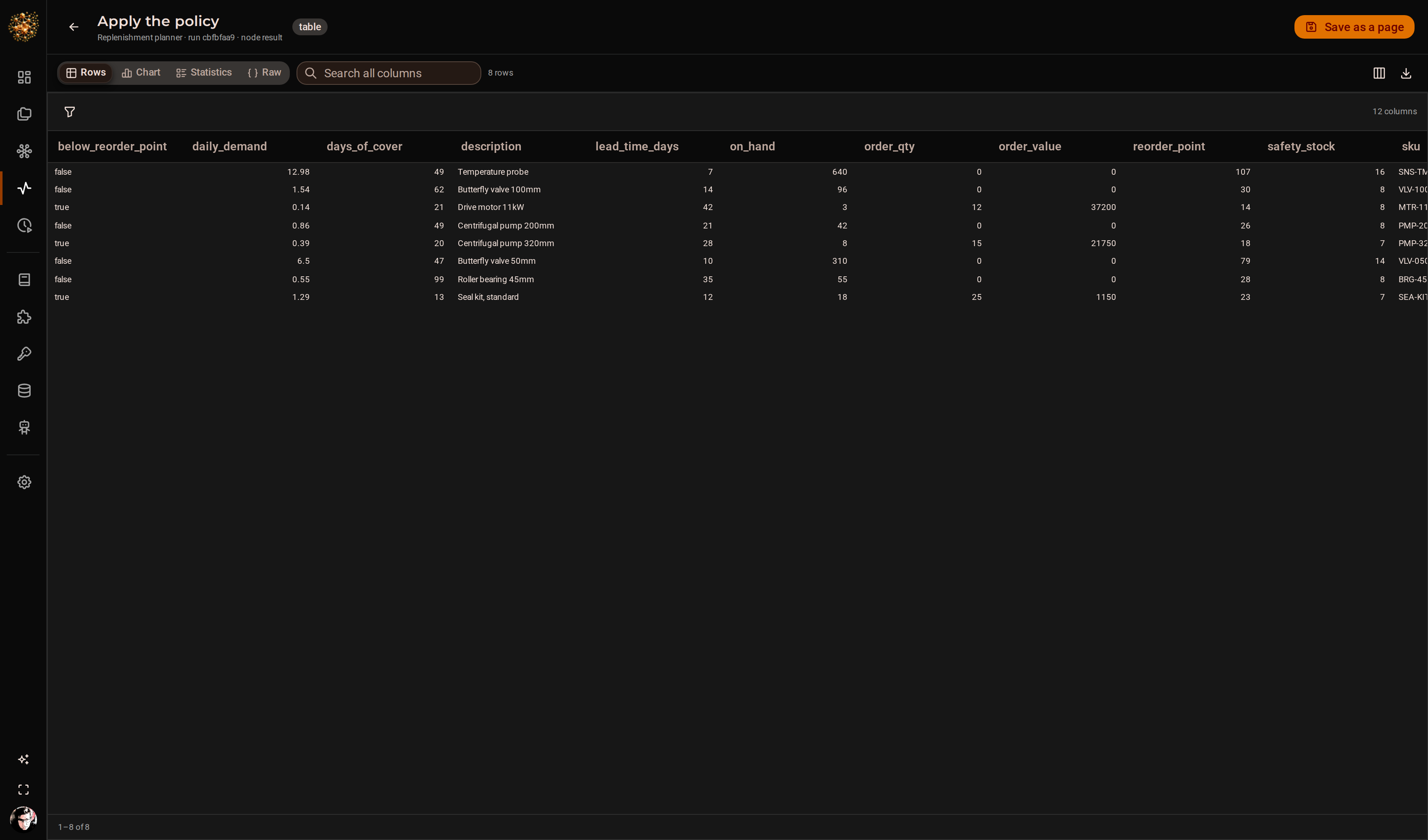

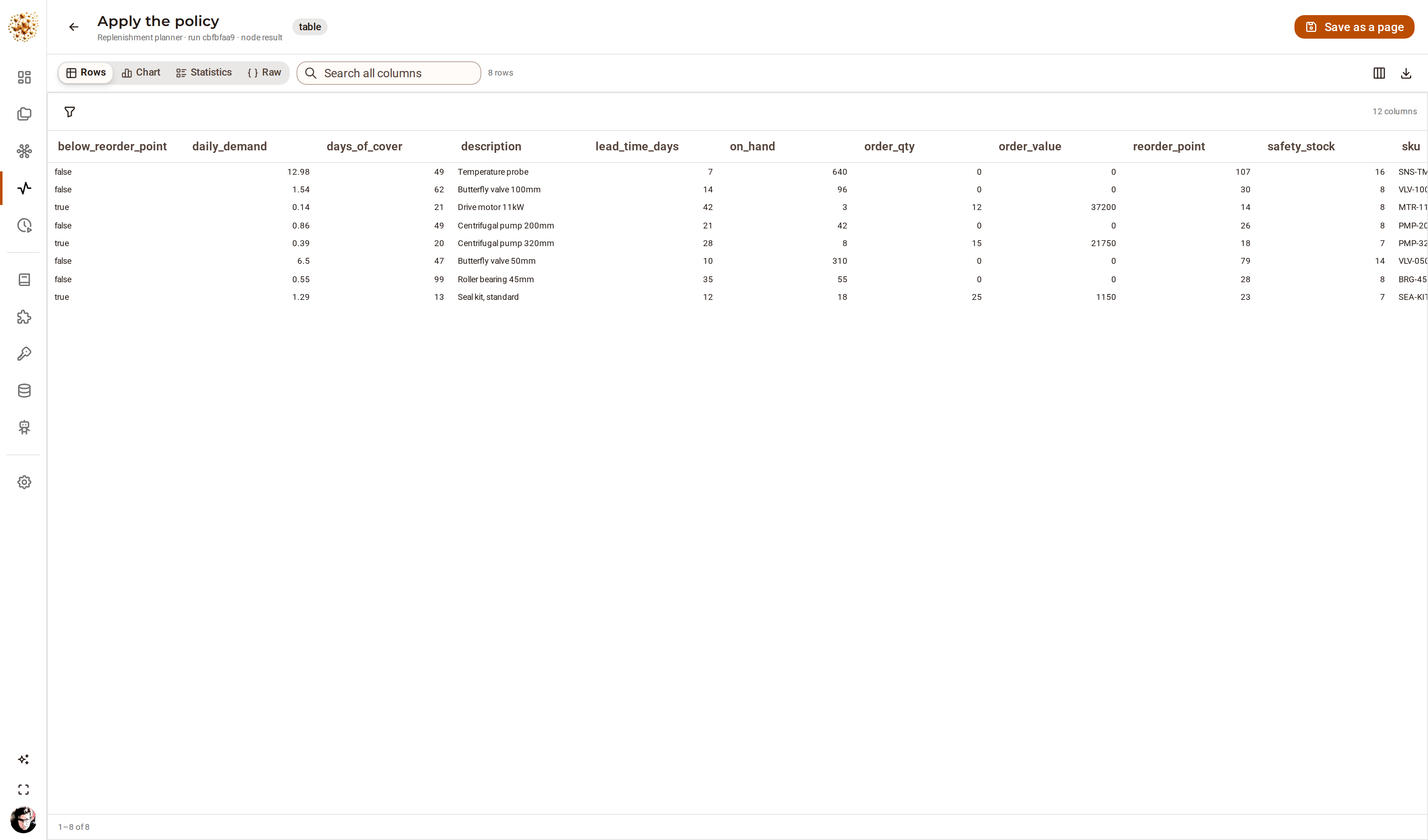

A DjiniousWorkflow node output opened full-page: the replenishment plan as a sortable, filterable table with column controls, statistics and chart tabs, and a CSV export. — The replenishment planner's output, opened from the run that produced it. Nothing was configured to make this work: the explorer reads the task's own result.Seeded showcase project

The DjiniousWorkflow node builder: a form describing a node's kind, its parameters and its request, with a panel for testing it against the real endpoint before saving. — Describe the call, declare its parameters, test it against the endpoint it will use in production, and it is in the catalog — palette, reference page, MCP tool list and assistant included.Seeded development stack

The node builder

The node you need, without a fork

Some of what a deployment automates is specific to that deployment: an internal REST service, a GraphQL endpoint behind your VPN, one SQL statement everybody keeps rewriting. Building those into a product would be wrong, and asking for a pull request to get them is worse. So the app builds them: describe the call, name its parameters, test it against the real endpoint, and it lands in the catalog.

HTTP, GraphQL, SQL, a script, or another graph wrapped as one step
Parameters you declare, with the same typed controls the built-in nodes get
Test it before saving, against the credential it will use in production
The palette, the reference page, the MCP tool list and the assistant pick it up immediately

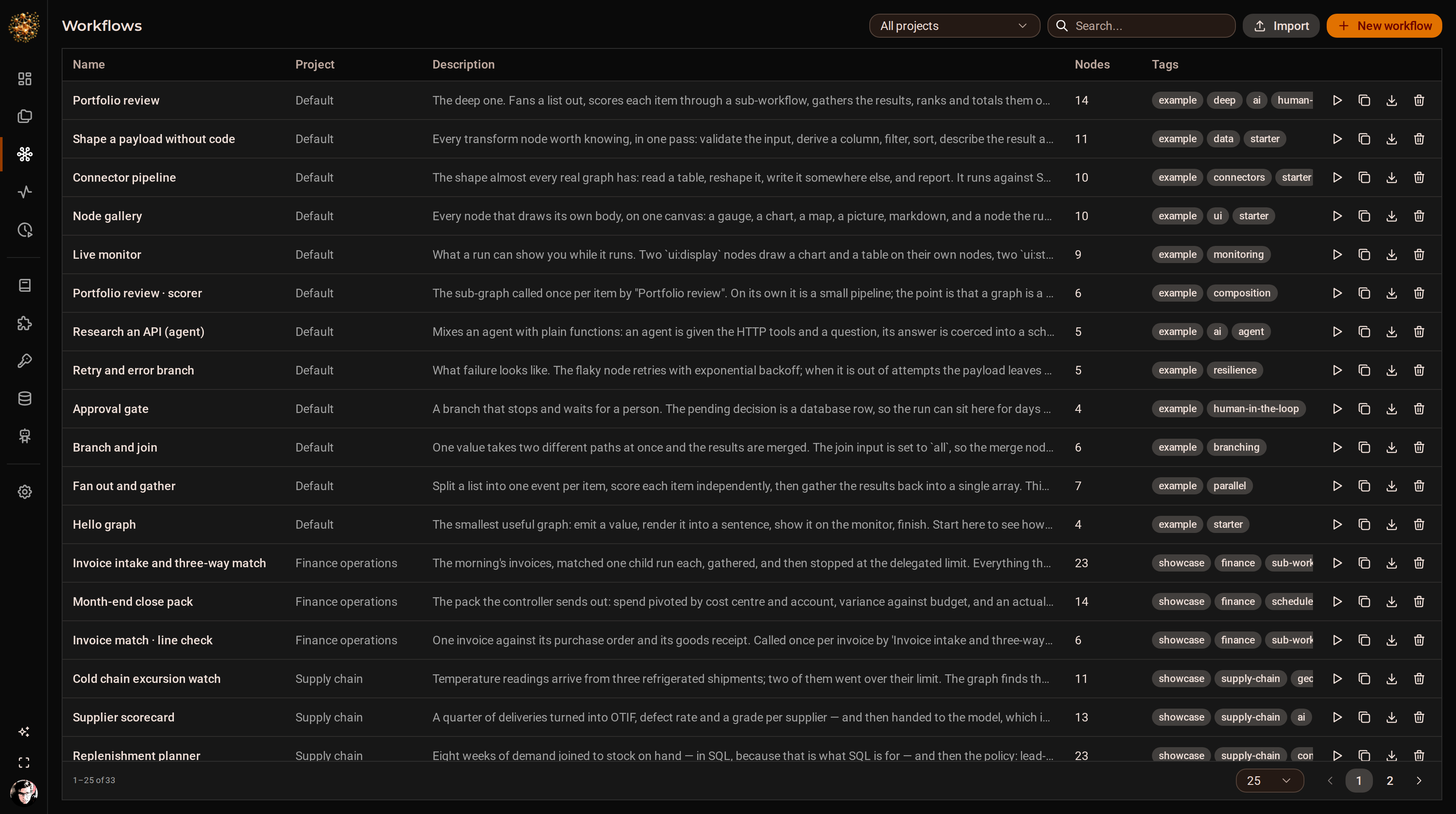

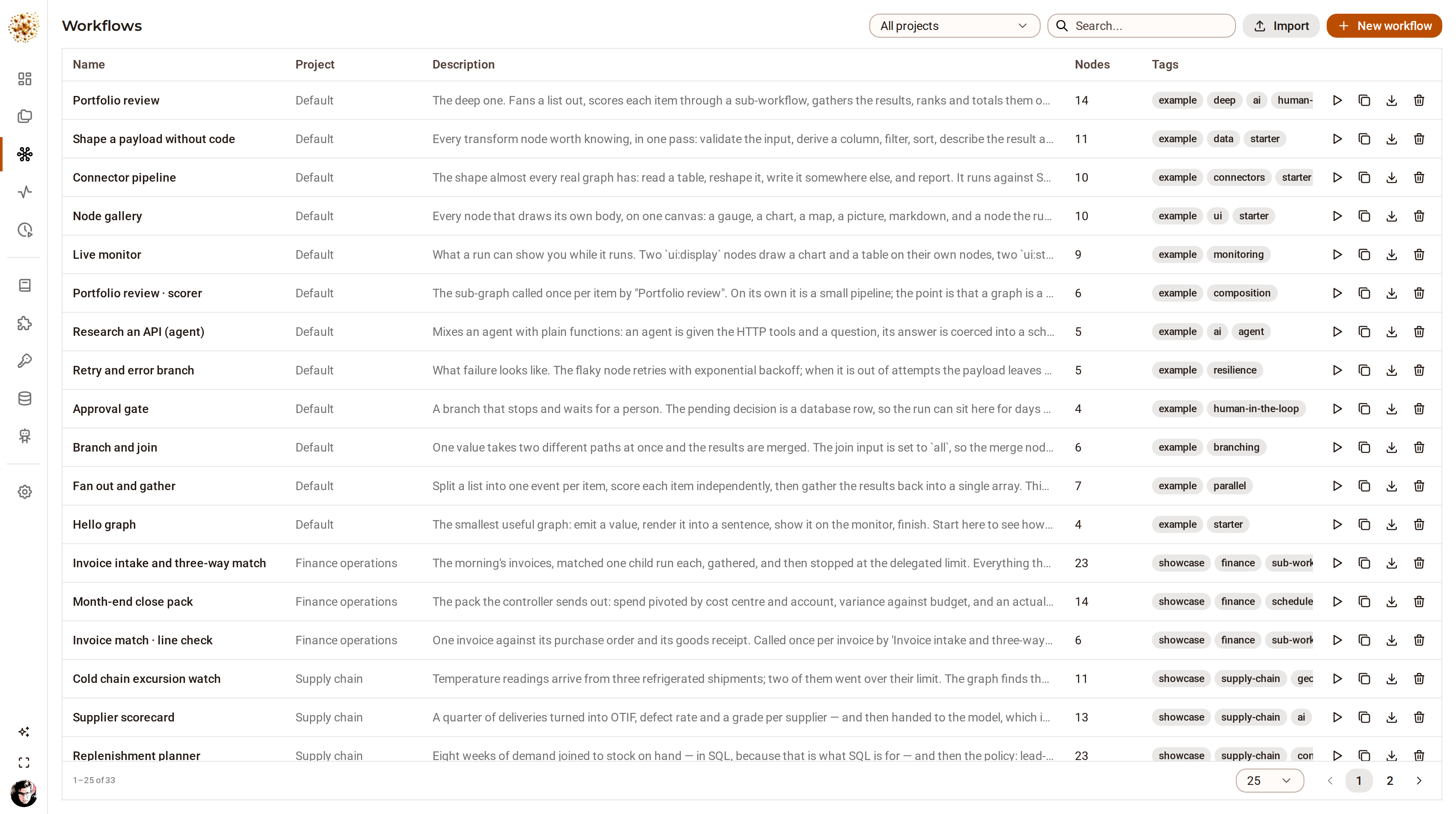

The DjiniousWorkflow workflows list: every graph in the deployment with its project, description, node count and tags, filterable by project and searchable. — Every graph in the deployment, with the project it belongs to and the number of nodes in it — the engine's own examples at the top, the showcase's fifteen below them.Seeded showcase project

Graphs as documents

Every graph, its project, and its size

A workflow is one JSON document: its nodes, their parameters, the edges between them and the layout. It exports, it imports, it diffs in a pull request — and it belongs to exactly one project, so what a deployment automates is a list you can read rather than an archaeology exercise.

Search by name or tag, filter by project, see the node count before you open it
Import a graph somebody exported; clone one to try a change without touching the original
A draft is allowed to be incomplete — the header tells you whether it is runnable, and why not
Deleting one refuses while it still has active runs, rather than orphaning them

At scale

A real graph is bigger than a diagram, and stays readable

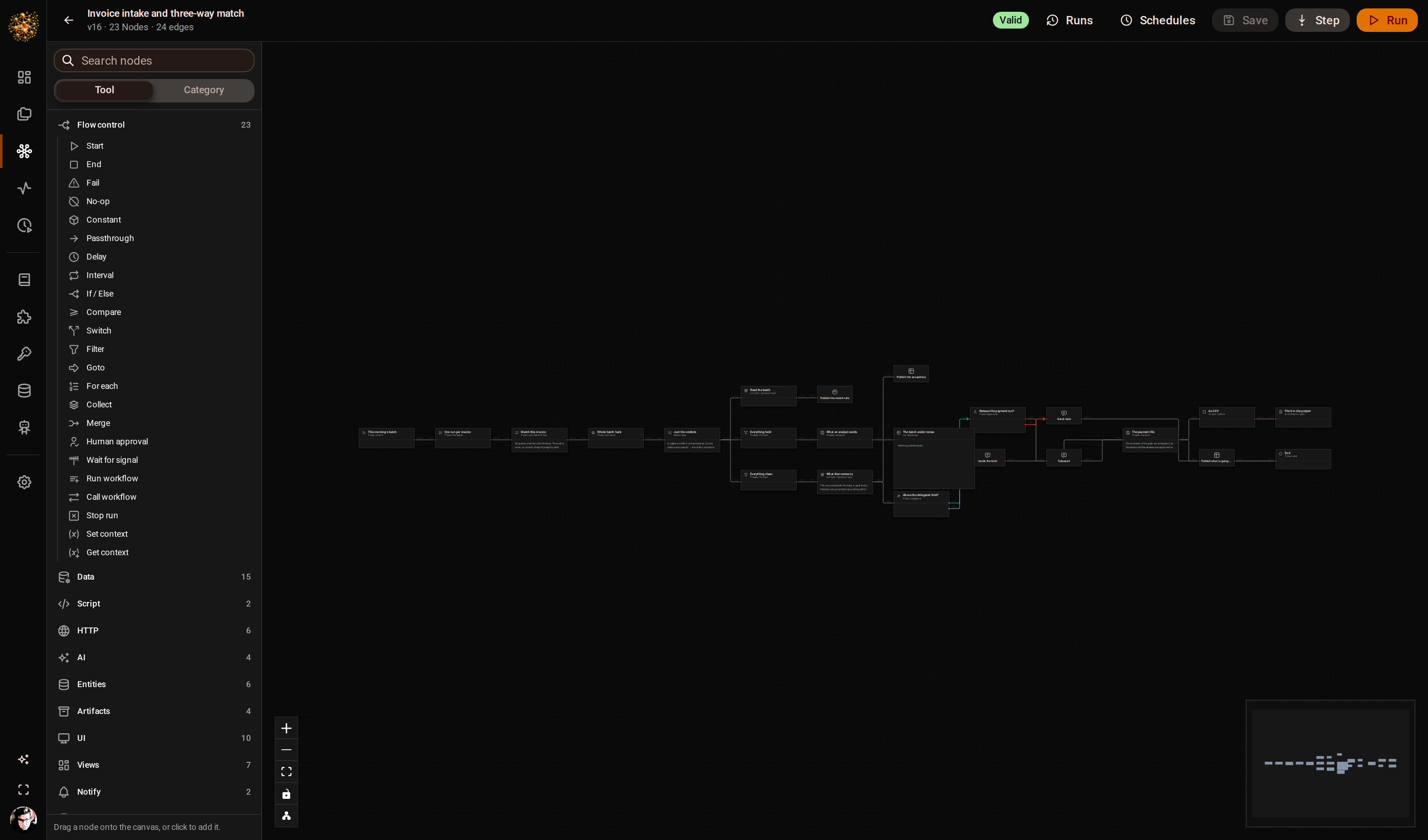

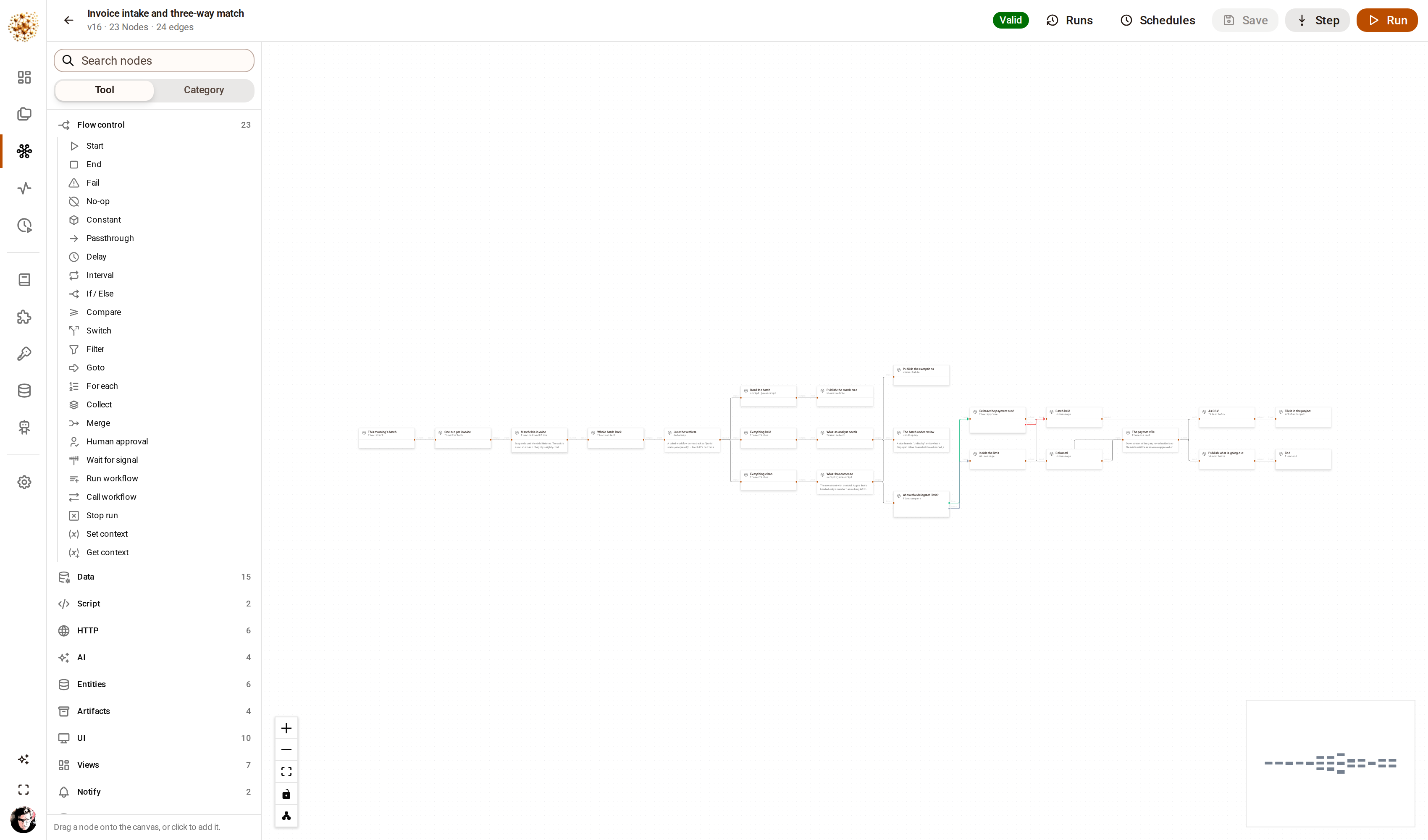

Twenty-three nodes: a fan-out, a sub-workflow call per item, a gather, two filtered branches, an approval gate above the delegated limit, and the payment file written only after the release. The arrange button laid this out; the shape is the documentation.
